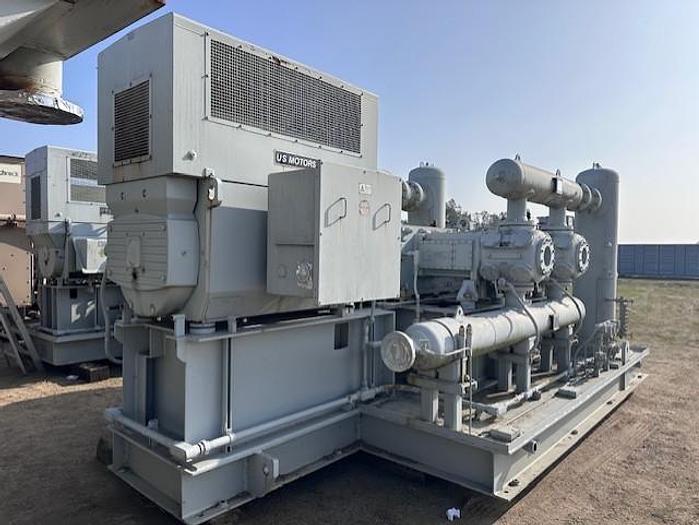

US Motors 1500 HP / Ariel JGT-4 SN F-45506 Two Stage Compressor Package Size 16.75" x 16.75" x 9.75" x 9.75"

US Motors – Titan Electric Motor

HP: 1500

RPM: 1190

Volts: 4160

3 Phase

Hz: 60

Frame: 6811Z

Type: HE

Enclosure: WP11

SN: V0320132191-0001R0001

Ariel Compressor Frame

Model: JGT-4

RPM: 1500

Stroke: 4.5”

Rod Load: 77,000 LBS total

MFG Date: March 2014

SN: F-45506

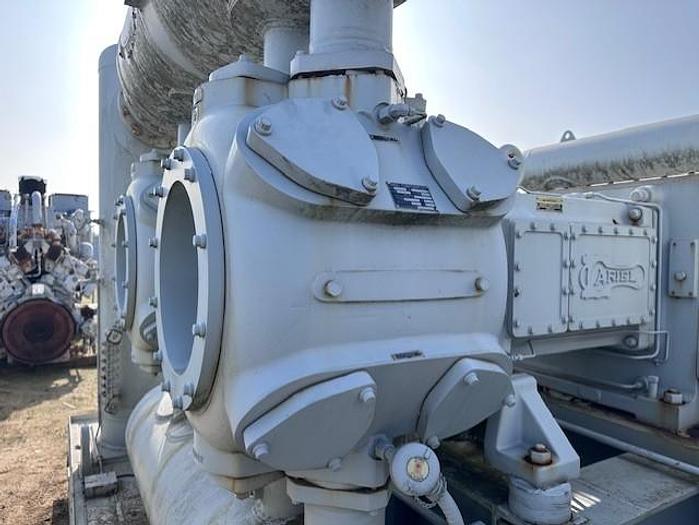

1st Stage Ariel Cylinders

Bore: 16.75”

Stroke: 4.5”

Class: ET

MAWP: 230

Standard fixed heads

SN: C-160121

SN: C-160119

2nd Stage Ariel Cylinders

Bore: 9.75”

Stroke: 4.5”

Class: ET

MAWP: 635

Standard fixed heads

SN: C-160120

Sn: C-160122

ACE Cooler

Model: E120

Reference #: P29843-1-1

Cooling sections: 265, 675 psi @ 350 Deg F

SN: 1403901
