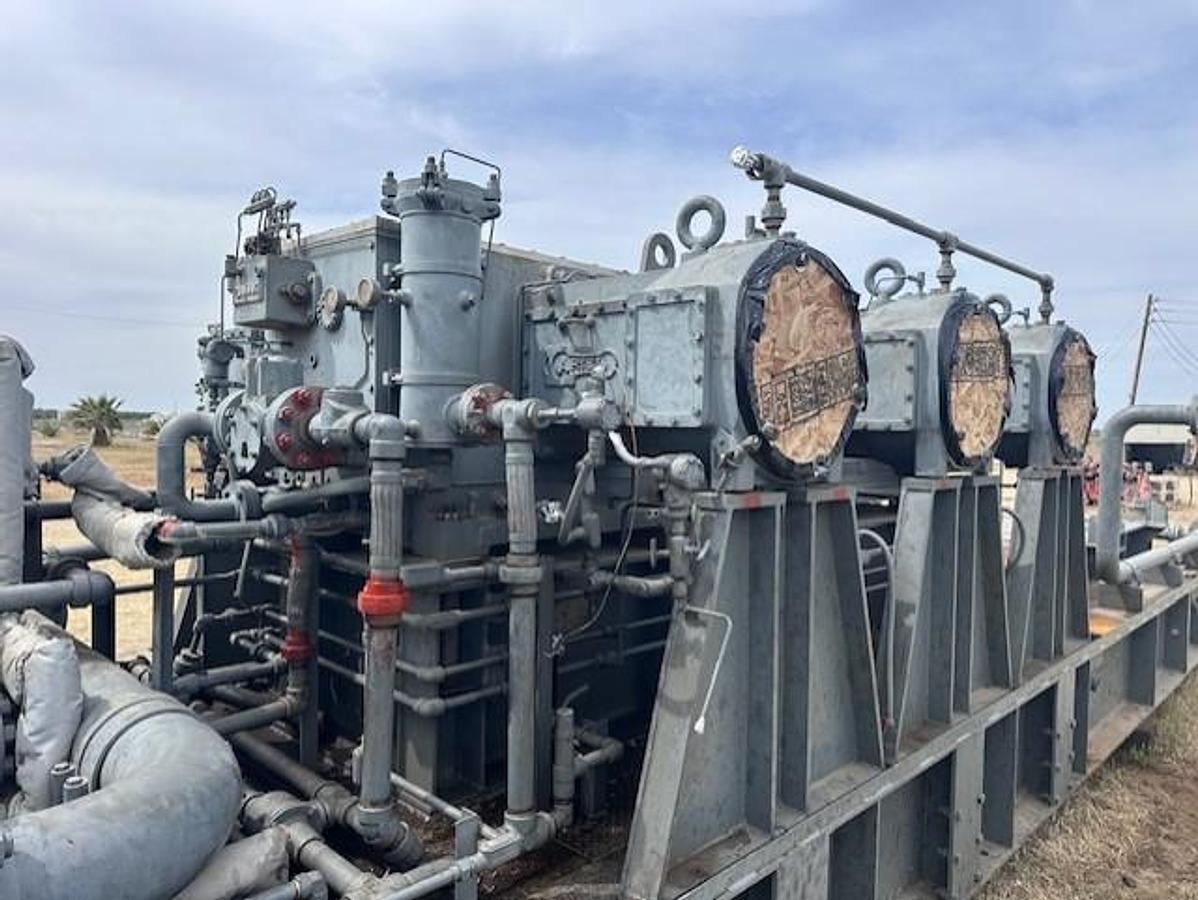

Ariel Frame Model JGC-6-2 Size 12.5 x 12.5 x 12.5 x 8.375 x 8.375 x 8.375 SN F-37926
or
Call 661-257-8000
Description
Ariel Compressor Frame
Model: JGC-6
Stroke: 6.5"
Max RPM: 1000
Min RPM: 500
Max RL: 117,000
Date: March 2012
SN: F-37926
1ST STAGE Throw 1, 3, 5 CYLINDERS
Bore:12.5"
Stroke: 6.5"
Class: C
RPM: 1000
MAWP: 800
SN: C-131600
SN: C-131602
SN: C-131604
2nd STAGE Throw 2, 4, 6 CYLINDERS
Bore: 8.375"
Stroke: 6.5"
Class: C
RPM: 1000
MAWP: 1895
SN: C-131601
SN: C-131603
SN: C-131605
Specifications
| Manufacturer | Ariel |
| Model | JGC-6-2 |
| Condition | New |
| Serial Number | F-37926 |
| Stock Number | CS-0020479 |
| Model | JGC-6 |
| Max RPM | 1000 |
| Min RPM | 500 |
| Max RL | 117,000 |
| Date | March 2012 |
