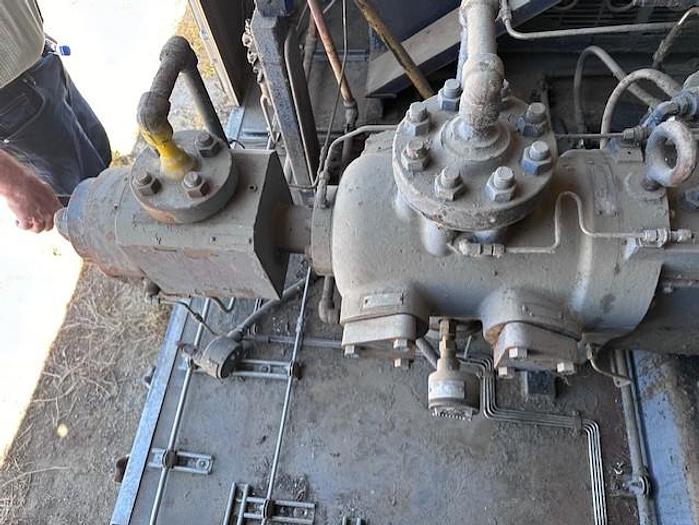

Ariel JGP-2-4 / 100 HP Four Stage CNG Compressor Package Size 8” x 3.75” x 2.75” 1.25” with 44VV Cooler - SN F-8561
Ariel JGP-2-4 / 100 HP Four Stage CNG Compressor Package Size 8” x 3.75” x 2.75” 1.25” with 44VV Cooler - SN F-8561
orCall (661) 257-8000
Description
Ariel Frame
Model: JGP-2-4
Stroke: 3"
Min RPM: 900
Max RPM: 1,800
Max RL: 12,000
Date: NOV 92
SN: F-8561
Electric Motor
Model: 10018Y13540
Frame: 404 / 5T
Hp: 100 (75)
Ph: 3
Hz: 60
Volts: 230 / 460
Amps: 226 / 113
RPM: 1780
Enclosure: TEFC XP
Cylinder 1st Stage
Bore: 8"
Stroke: 3"
MAWP: 440
SN: C-37777
Cylinder 2nd Stage
Bore: 3.75"
Stroke: 3"
MAWP: 1865
RPM: 1800
SN: C-22261R
Cylinder 3rd Stage
Bore: 2.75"
Stroke: 3"
MAWP: 2200
SN: C-22262
Cylinder 4th Stage
Bore: 1.25"
Stoke: 3"
MAWP: 5280
SN: C-22263
Air X Changer
Model: 42VV
Job No.: 926096
Specifications
| Manufacturer | Ariel |
| Model | JGP-2-4 |
| Condition | Used |
| Serial Number | F-8561 |
| Stock Number | CS-0020415 |
| Model | JGP-2-4 |
| Stroke | 3" |
| Min RPM | 900 |
| Max RPM | 1,800 |
| Max RL | 12,000 |
| Date | NOV 92 |
| SN | F-8561 |
| Model | 10018Y13540 |
| Frame | 404 / 5T |
| Hp | 100 (75) |
| Ph | 3 |
| Hz | 60 |
| Volts | 230 / 460 |
| Amps | 226 / 113 |
| RPM | 1780 |
| Enclosure | TEFC XP |
| Bore | 8" |
| MAWP | 440 |
| SN | C-37777 |
| Bore | 3.75" |
| MAWP | 1865 |
| RPM | 1800 |
| SN | C-22261R |
| Bore | 2.75" |
| MAWP | 2200 |
| SN | C-22262 |
| Bore | 1.25" |
| Stoke | 3" |
| MAWP | 5280 |
| MAWP | 5280 |
| SN | C-22263 |
| Model | 42VV |
| Job No. | 926096 |
