Dresser Rand 7MOS-4 SN 1365682 / 550 HP Compressors Size 17.5" x 11.5" x 10.5" x 10.5" x 7" Stroke LNGo Compressors

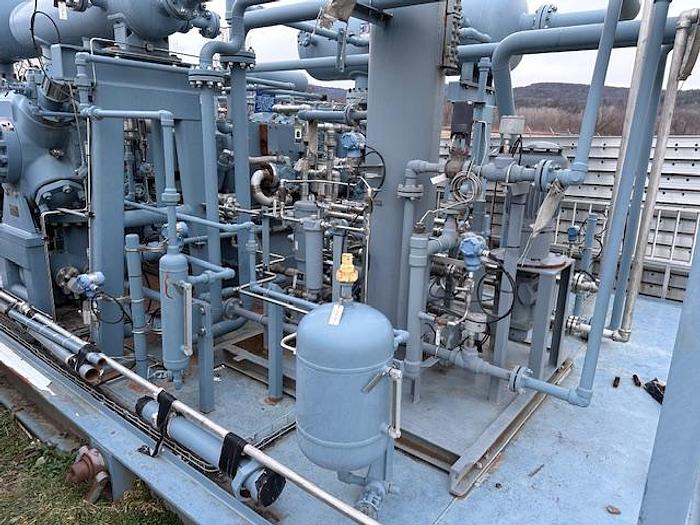

Dresser Rand MOS-4 / 550 HP Compressor Packages – designed for LNG Service

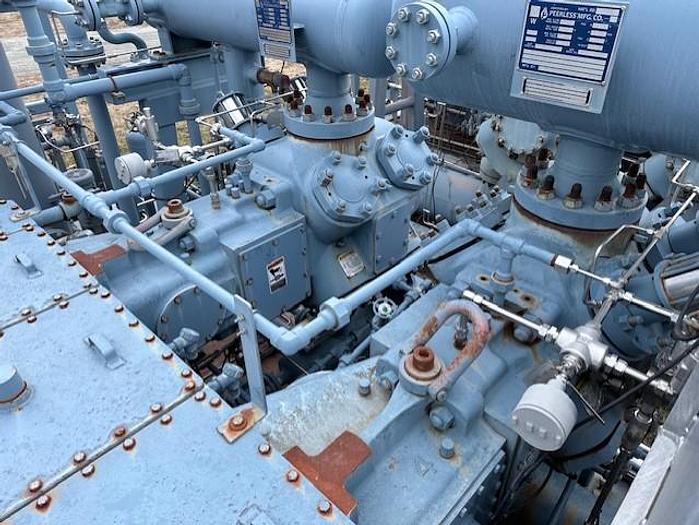

Dresser Rand Compressor Frame

Model: 7MOS-4

Stroke: 7”

RPM: 425

Non Lube Design

SN: 1365682

Dresser Rand Compressor Cylinder

Bore: 17.5”

Stroke: 7”

Class: MOS

MAWP: 545

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360866

Dresser Rand Compressor Cylinder

Bore: 11.5”

Stroke: 7”

Class: MOS

MAWP: 1265

Water cooled

Non lube cylinder

Standard fixed head

SN: 1373905

Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: MOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360922

Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: MOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360923

WEG Electric Motor

HP: 550

RPM: 426

Volts: 480

Amps: 874.1

Hz: 50

Phase: 3

Frame: 8008

Enclosure: TEFC

Insulation Class: F

S.F.: 1.0

P.F.: 0.60

Duty: S1

Code: J

Altitude: 3300 ft

Weight 16,888 LBS

SN: 1021012024

Dresser Rand Panel

(NO TAG)

Skid Dimensions: 27’5” L x 14’ W x 9’11” H

Estimated weight: 91,000 LBS
