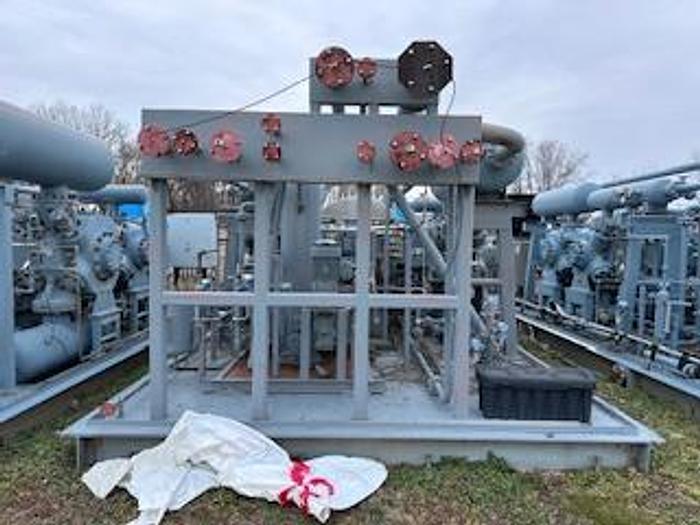

Dresser Rand 7MOS-4 SN 1365677 / 550 HP Compressors Size 17.5" x 11.5" x 10.5" x 10.5" x 7" Stroke LNGo Compressors

Dresser Rand MOS-4 / 550 HP Compressor Packages – designed for LNG Service

Dresser Rand Compressor Frame

Model: 7MOS-4

Stroke: 7”

RPM: 425

Non Lube Design

SN: 1365677

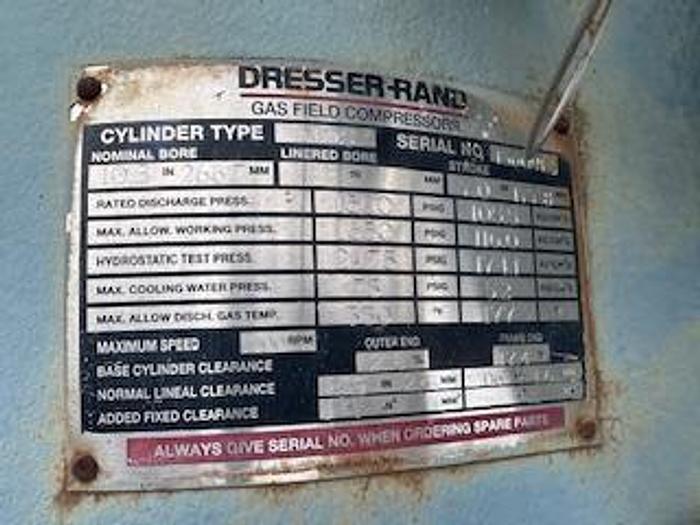

Dresser Rand Compressor Cylinder

Bore: 17.5”

Stroke: 7”

Class: MOS

MAWP: 545

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360861

Dresser Rand Compressor Cylinder

Bore: 11.5”

Stroke: 7”

Class: MOS

MAWP: 1265

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360897

Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: MOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360913

Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: MOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1360912

WEG Electric Motor

HP: 550

RPM: 426

Volts: 480

Amps: 874.1

Hz: 50

Phase: 3

Frame: 8008

Enclosure: TEFC

Insulation Class: F

S.F.: 1.0

P.F.: 0.60

Duty: S1

Code: J

Altitude: 3300 ft

Weight 16,888 LBS

SN: 1020378000

Dresser Rand Panel

(NO TAG)

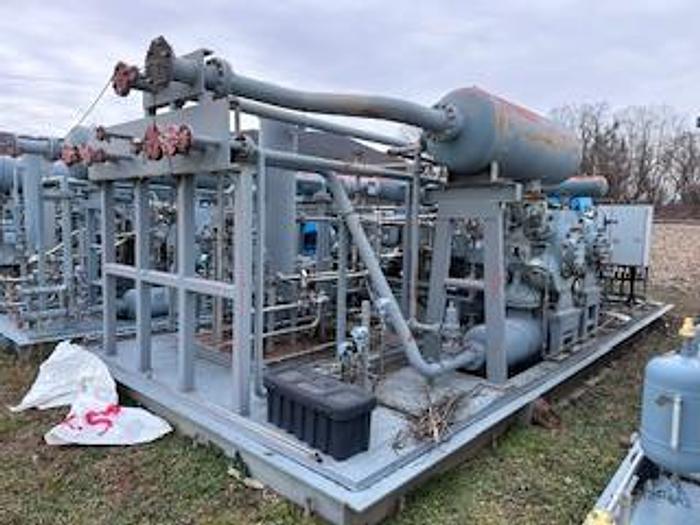

Skid Dimensions: 27’5” L x 14’ W x 9’11” H

Estimated weight: 91,000 LBS
