Dresser Rand 7MOS-4 SN 1392353 / 550 HP Compressors Size 17.5" x 11.5" x 10.5" x 10.5" x 7" Stroke LNGo Compressors
Dresser Rand 7MOS-4 SN 1392353 / 550 HP Compressors Size 17.5" x 11.5" x 10.5" x 10.5" x 7" Stroke LNGo Compressors
Description
Dresser Rand MOS-4 / 550 HP Compressor Packages – designed for LNG Service
Dresser Rand Compressor Frame
Model: 7MOS-4
Stroke: 7”
RPM: 425
Non Lube Design
SN: 1392353
Dresser Rand Compressor Cylinder
Bore: 17.5”
Stroke: 7”
Class: HOS
MAWP: 545
Water cooled
Non lube cylinder
Standard fixed head
SN: 1381130
Dresser Rand Compressor Cylinder
Bore: 11.5”
Stroke: 7”
Class: HOS
MAWP: 1265
Water cooled
Non lube cylinder
Standard fixed head
SN: 1381039
Dresser Rand Compressor Cylinder
Bore: 10.5”
Stroke: 7”
Class: HOS
MAWP: 1650
Water cooled
Non lube cylinder
Standard fixed head
SN: 1381254
Dresser Rand Compressor Cylinder
Bore: 10.5”
Stroke: 7”
Class: HOS
MAWP: 1650
Water cooled
Non lube cylinder
Standard fixed head
SN: 1381253
WEG Electric Motor
HP: 550
RPM: 426
Volts: 480
Amps: 874.1
Hz: 50
Phase: 3
Frame: 8008
Enclosure: TEFC
Insulation Class: F
S.F.: 1.0
P.F.: 0.60
Duty: S1
Code: J
Altitude: 3300 ft
Weight 16,888 LBS
SN: 1021012035

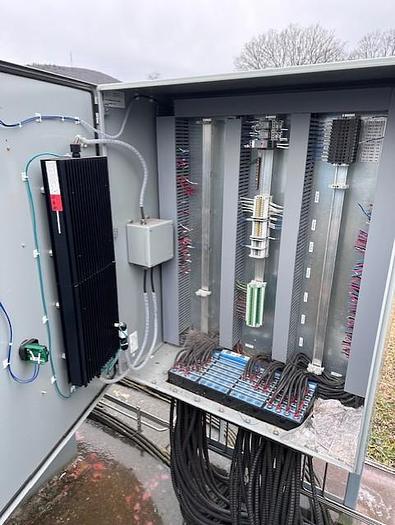

Dresser Rand Panel
PN: 23844
Drawing: 000-025-0114
Supply Voltage: 24 VDC
Max Current: 10 Amps
SCCR: 10 Ks RMS
SN: 23844-011
Skid Dimensions: 27’5” L x 14’ W x 9’11” H
Estimated weight: 91,000 LBS
Specifications
Manufacturer | Dresser Rand |
Model | 7MOS-4 |
Condition | Used |
Serial Number | 1392353 |
Stock Number | CS-0020331 |
Model | 7MOS-4 |
Stroke | 7” |
RPM | 425 |
SN | 1392353 |
