Ariel JGD-4 / Toshiba 3100 HP Two Stage Compressor Package SN: F-16653
Ariel JGD-4 / Toshiba 3100 HP Two Stage Compressor Package SN: F-16653
orCall (661) 257-8000
Description
Universal Compression Unit Number 1009-B:
Ariel Compressor Frame
Model: JGD-4
Stroke: 5.5”
RPM: 1200
Rod load: 114,000 lbs
Ariel MFG Date: June 2001
SN: F-16653

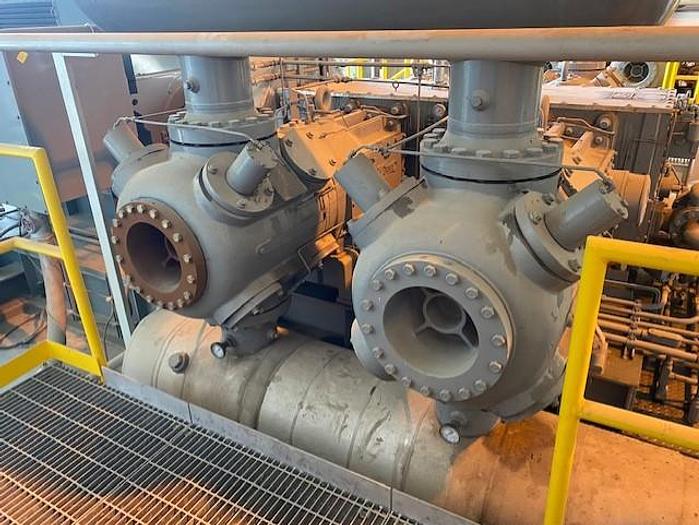

1st stage Ariel Cylinders
Bore: 13.625”
Stroke: 5.5”
MAWP: 815
Class: D
SN: C-50867
Complete with standard fixed heads and suction valve unloaders on HE only.
2nd stage Ariel Cylinders
Bore: 9.125”
Stroke: 5.5”
MAWP: 1270
Class: D
SN: C-50869
Complete with standard fixed heads

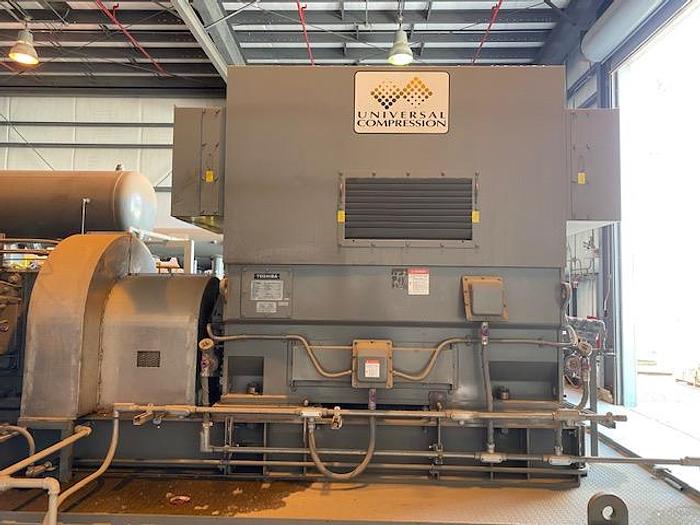

Toshiba 3 Phase Induction Electric Motor
HP: 3100
RPM: 1185
Model: J3107NLULIOT
Type: TIKE-DCW
Volts: 4160
Amps: 378
Frame: 450-1600
Poles: 6
Hz: 60
S.F.: 1.15
Rating: Continuous
MFG: 2001
Weight: 15,400 lbs
SN: 0140042
KCI Compressor Control Panel
SN: KCI-1009B
ACE cooler
Model: E120-2B
Ref Number: KC-1009B
SN: 01341
Specifications
| Manufacturer | Ariel |
| Model | JGD-4 |
| Year | 2001 |
| Condition | Used |
| Serial Number | F-16653 |
| Stock Number | CS-0019873 |
| Driver MFG | Toshiba |
| Driver Model | J3107NLULIOT |
| # of stages | 2 |
| Cylinder Sizes | 13.625” x 9.125” |
| Cooler MFG | ACE |
| Cooler Model | E120-2B |
| Model | KC-1009B |
| Stroke | 5.5” |
| RPM | 1200 |
| Rod load | 114,000 lbs |
| SN | F-16653 |
| Bore Size | 13.625” |
| MAWP | 815 |
| Class | D |
| SN | C-50867 |
| Bore Size | 9.125” |
| MAWP | 1270 |
| SN | C-50869 |
