Caterpillar G342NA / Ariel JGW-2 Three stage Compressor package SN F-4547
Caterpillar G342NA / Ariel JGW-2 Three stage Compressor package SN F-4547
Description
Ariel Frame
Model: JGW-2
Stroke: 4.25"
Max RPM: 1200
Min RPM: 600
Max RL: 24,000
Date: JAN-85
SN: F-4547

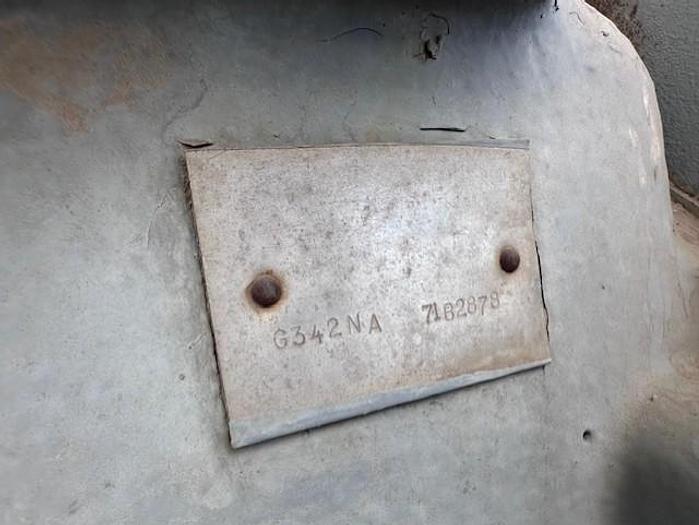

Caterpillar Engine
Model: G342NA
SN: 71B2878
Ariel Cylinder 1st Stage
Bore: 11.5"
Stroke: 4.25"
MAWP: 300
SN: C-12343
Ariel Cylinder 2nd Stage
Bore: 8"
Stroke: 4.25"
MAWP: 550
SN: C-12344
Ariel Cylinder 3rd Stage
Bore: 4.625"
Stroke: 4.625"
SN: No Tag

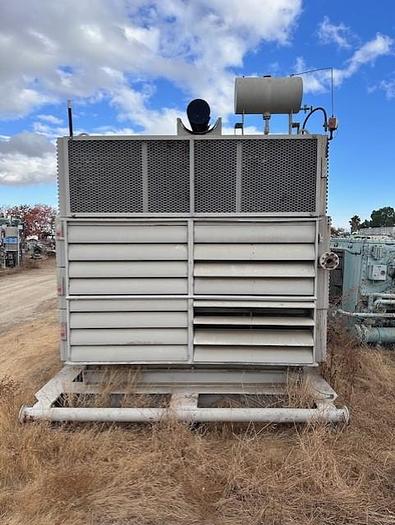

Air Cooled Exchangers Tag
Model: J4D
Design Pressure: 840 PSI @ 350 Deg F
Hydro Test: 960 PSI
Year Built: 01-85
SN: 841353-4
Air Cooled Exchangers 2nd and 3rd Tag
Model: J4D
Design Pressure: 1270 PSI @ 350 Deg F
Hydro Test: 1905 PSI
Year Built: 01-85
SN: 841353-3
SN: 841353-2
Air Cooled Exchangers 4th Tag
Model: JD4
Design Pressure: 150 PSI @ 350 Deg F
Year Built: 01-85
SN: 841353-1
Ariel JGW-2-3 Stage frame and cylinders SN: F-4547
1st Stg. 11.5” x 4 ¼” Stroke MAWP: 300, SN: C-12343
2nd Stg. 8” x 4 ¼” Stroke MAWP: 550, SN: C-12344
3rd Stg. 4 5/8 x 4 5/8” Stroke “ SN: No Tag
Cat G342NA Spacer Plated Engine SN: 71B2878
Size: 11.5" x 8" x 4.625" x 4.25" STK,
Specifications
| Manufacturer | Ariel |
| Model | JGW-2-3 |
| Condition | Used |
| Serial Number | F-4547 |
| Stock Number | CS-0018603 |
| Driver MFG | CAT |
| Driver Model | G342NA |
| # of stages | 3 |
| Cylinder Sizes | 11.5″ X 8″ X 4.625″ |
| Model | JGW-2 |
| Stroke | 4.25" |
| Max RPM | 1200 |
| Min RPM | 600 |
| Max RL | 24,000 |
| Date | JAN-85 |
| SN | F-4547 |
| Model | G342NA |
| SN | 71B2878 |
| Bore | 11.5" |
| MAWP | 300 |
| SN | C-12343 |
| Bore | 8" |
| MAWP | 550 |
| SN | C-12344 |
| Bore | 4.625" |
| Stroke | 4.625" |
| SN | No Tag |
| Model | J4D |
| Hydro Test | 960 PSI |
| Year Built | 01-85 |
| SN | 841353-4 |
| Hydro Test | 1905 PSI |
| SN | 841353-3 |
| SN | 841353-2 |
| Model | JD4 |
| SN | 841353-1 |
